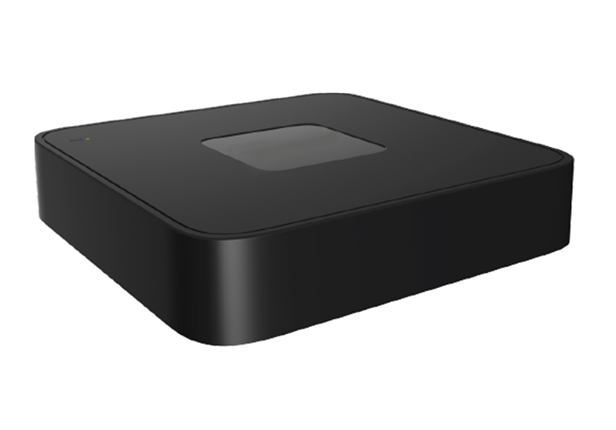

GE-NR1105/IBEu

GE-NR1105/IBEu

1HDD, 5CH

Lite series

KEY FEATURES

• Up to 5-ch IP camera accesses

• Incoming/Outgoing bandwidth:

60Mbps/40Mbps

• S+265, H.265, S+264, H.264 video formats

• Max. decoding capability: 6MP(30fps)×1 or

1080P(30fps)×4

• 4-ch synchronous playback

• Up to 8 TB capacity for each HDD

• HDMI output at up to 4K resolution

• Simultaneous HDMI and VGA outputs

• 1×RJ-45, 10/100 Mbps self-adaptive

Ethernet port

• Support cloud upgrade

• S+ 265 compression effectively reduces the

storage space by up to 75%

SPECIFICATIONS

Intelligent Analytics

AI by Camera Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Loiter; Running;

Parking; Video Abnormal; Audio Abnormal; On Duty Detection; Crowd Detection; Smart

Motion; Human/Vehicle Classification

VCA Search Early-warning Search

Storage

HDD Capacity Up to 8TB capacity for each HDD

Disk Group 1 Disk Group

Record Playback

Multi-channel Playback 4

Record Mode Manual Recording; Alarm Recording; Schedule Recording

Storage Method Local HDD

Backup USB storage device

Playback Function Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video

Editing)/Step/ Digital Zoom

Video and Audio

Access Channel 5

Incoming Bandwidth 60Mbps

Outgoing Bandwidth 40Mbps

Resolution 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Preview Decoding Capability 6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×5,

4CIF(30fps)×5

Playback Decoding Capability 6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×2, 1080P(30fps)×3, 720P(30fps)×4

Third-party Camera Access ONVIF; RTSP

HDMI Output HDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz),

(1080P)1920×1080(50Hz/60Hz), (4K)3840×2160(30Hz)

VGA Output VGA: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz),

(1080P)1920×1080(50Hz/60Hz)

Multi-screen Display Simultaneous Output:

VGA: 1/2/3/4/5/6

HDMI: 1/2/3/4/5/6

Compression

Video Compression S+265; H.265; S+264; H.264

Audio Compression G711A; G711U; ADPCM_DIV4

Stream Type Video; Video & Audio

External Port

USB 2×USB2.0

HDMI 1×HDMI(supports up to 4K resolution output)

VGA 1×VGA

Network Interface 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port

SATA 1×SATA interface

Network

Protocols 802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6;

Multicast; NTP; RTCP; RTP; RTSP; SRTP; SSH; TLSv1.2; TCP/IP; UDP; Unicast; UPnP

System Compatibility RTSP; CGI; SDK

Client Golden Eye VMS

Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Alarm

General Alarm Motion Detection; Mask Alarm; Alarm Input(IPC)

Exceptions Alarm Video Loss; IP Conflict; MAC Conflict; Network Disconnected; No Disk; Illegal Access; Disk

group space alert; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of

disk; Abnormal temperature of the disk; Voltage Alarm(IPC); RTC Failure

General

Web Client Language English; Spanish; Italian; Turkish; French; Polish; Hebrew; German; Portuguese

Operating Temperature -10℃~+55℃ (+14℉~+131℉)

Operating Humidity 10%~90%RH (non-condensing)

Storage Temperature -20℃~+60℃ (-4℉~+140℉)

Power Consumption <10W (HDD not included, idling)

Power Supply DC12V 1.5A

Boundary Dimensions 200(L)200(W)43(H)mm

Package Dimensions 315(L)70(W)235(H)mm

Package Kit Network Video Recorder; Screw Pack; Mouse; European Standard Power Adapter

Net Weight 0.4 kg

Gross Weight 0.7 kg

*Design and specifications are subject to change for product improvements without prior notice*

DIMENSIONS (Unit: mm)

Physical Interfaces
